clc;
clear;
close all;

%% Load Signal
% Audio Sample [Sampling Rate = 192k]
[y192, Fs192] = audioread("inputData/myName192kHz.wav");

%% Variables
% Limit Frequency Range [0 to (192k/2=)96k] (I use 200Hz so it runs faster)
freq_limit = 200;

% Carrier Frequency For AM Modulation
Fc = 20000;

% Cutoff Frequency For AM Demodulation Lowpass [Human Voice: ~0 to ~20k]
cutoff = 20000;

% Filter length [Higher = More Resolution]
M = 501;

% Delay For Voice in Seconds
delaySec = 0.1;

% Attenuating Volume [0 to 1]
volume = 0.6;

%% Plotting Original Signal
% Discrete Number Of Values
N = length(y192);
n = 0:N-1;

% Discrete Number Of Values / Sample Rate To Get Time Vector
t192 = n / Fs192;

% Plotting Time Domain Signal
figure;
subplot(4, 2, 1);
plot(t192, y192, 'b');
title('Original Audio - Time Domain');
xlabel('Time (s)');
ylabel('Magnitude');
soundOriginal = audioplayer(y192, Fs192, 24);

% Frequency Limit To See Human Voice In The Signal
K = round(freq_limit * N / Fs192);

% Manually Calculated FFT
f192 = zeros(K, 1);
for k = 1:K
     f192(k) = sum(y192(:, 1) .* exp(-1j * 2 * pi * (k - 1) / N * n'));
end
freqs = (0:k-1) * Fs192 / N;

% Plotting Frequency Domain Signal
subplot(4, 2, 2);
plot(freqs, abs(f192));
title('Original Audio - Frequency Domain');
xlabel('Frequency (Hz)');
ylabel('Magnitude');

%% AM Modulation
% Carrier Wave
carrier = cos(2 * pi * Fc * t192);

% Messenger Wave Modulated With Carrier Wave - - - AM Signal
am_signal = ((1 + y192(:, 1)') .* carrier).';

% Plotting Time Domain Signal
subplot(4, 2, 3);
plot(t192, am_signal, 'b');
title('AM Modulation - Time Domain');
xlabel('Time (s)');
ylabel('Magnitude');
soundModulated = audioplayer(am_signal, Fs192, 24);

% Manually Calculated FFT
f_am = zeros(K, 1);
for k = 1:K
    f_am(k) = sum(am_signal(:, 1) .* exp(-1j * 2 * pi * (k - 1) / N * n'));
end

% Plotting Frequency Domain Signal
subplot(4, 2, 4);
plot(freqs, abs(f_am));
title('AM Modulation - Frequency Domain');
xlabel('Frequency (Hz)');
ylabel('Magnitude');

%% AM Demodulation FIR
% Coherent Demodulation
demod_raw = am_signal.' .* carrier;

% Normalized to Sample Rate
wc = 2 * pi * cutoff / Fs192;

% Filter length & MSE
m = 0:M-1;
alpha = (M - 1) / 2;

% Low Pass With Sinc Impulse Response
h = sin(wc * (m - alpha)) ./ (pi * (m - alpha));
h(alpha + 1) = wc / pi;
h = h / sum(h);

% Plotting Impulse Response
subplot(4, 2, 5);
plot(0:M-1, h); grid on;
title('Transfer Function - Coefficients');
xlabel('Index');
ylabel('Magnitude');

% Manually Calculated FFT
H = zeros(K, 1);
for k = 1:K
    H(k) = sum(h .* exp(-1j * 2 * pi * (k - 1) / K * m));
end

% Frequency Range to Show All of Transfer Function
fTrans = (0:K-1) * Fs192 / K;

% Limiting Range because Transfer Function Turns to a 'U' else wise.
nyquist = fTrans <= Fs192 / 2;

% Plotting Frequency Response
subplot(4, 2, 6);
plot(fTrans(nyquist), 20 * log10(abs(H(nyquist)))); grid on;
title('Transfer Function - Frequency Response');
xlabel('Frequency (Hz)');
ylabel('Magnitude');

% Manually Calculated FIR
demod_signal = zeros(N, 1);
for i = 1:N
    for j = 1:M
        if (i - j + 1 > 0)
            demod_signal(i) = demod_signal(i) + demod_raw(i - j + 1) * h(j);
        end
    end
end
demod_signal = demod_signal - mean(demod_signal);
demod_signal = 2 * demod_signal;

% Plotting Time Domain Signal
subplot(4, 2, 7);
plot(t192, demod_signal, 'b');
title('Demodulated Signal - Time Domain');
xlabel('Time (s)');
ylabel('Magnitude');
soundDemodulated = audioplayer(demod_signal, Fs192, 24);

% Manually Calculated FFT
f_demod = zeros(K, 1);
for k = 1:K
    f_demod(k) = sum(demod_signal(:, 1) .* exp(-1j * 2 * pi * (k - 1) / N * n'));
end

% Plotting Frequency Domain Signal
subplot(4, 2, 8);
plot(freqs, abs(f_demod));
title('Demodulated Signal - Frequency Domain');
xlabel('Frequency (Hz)');
ylabel('Magnitude');

%% Plotting Original Signal For Next Graphs
% Plotting Time Domain Signal
figure;
subplot(4, 2, 1);
plot(t192, y192, 'b');
title('Original Audio - Time Domain');
xlabel('Time (s)');
ylabel('Magnitude');

% Plotting Frequency Domain Signal
subplot(4, 2, 2);
plot(freqs, abs(f192));
title('Original Audio - Frequency Domain');
xlabel('Frequency (Hz)');
ylabel('Magnitude');

%% Creating Delay
% Delay samples
delaySamples = round(delaySec * Fs192);

% Delay Time Signal
yDelay(:, 1) = y192(:, 1);
for i = (delaySamples + 1):N
    yDelay(i, 1) = y192(i, 1) + volume * y192(i - delaySamples, 1);
end

% Plotting Time Domain Signal
subplot(4, 2, 3);
plot(t192, yDelay, 'b');
title('Delayed Audio - Time Domain');
xlabel('Time (s)');
ylabel('Magnitude');
soundDelay = audioplayer(yDelay, Fs192, 24);

% Delay Frequency Signal
fDelay = zeros(K, 1);
for k = 1:K
    fDelay(k) = sum(yDelay(:, 1) .* exp(-1j * 2 * pi * (k - 1) / N * n'));
end

% Plotting Frequency Domain Signal
subplot(4, 2, 4);
plot(freqs, abs(fDelay));
title('Delayed Audio - Frequency Domain');
xlabel('Time (s)');
ylabel('Magnitude');

%% Removing Delay With IIR
yClean = zeros(size(yDelay));
for i = 1:N
    if i > delaySamples % Meaning delaySec Has Passed
        yClean(i, 1) = -volume * yClean(i - delaySamples, 1) + yDelay(i, 1);
    else % Meaning Delay Hasn't Started Yet
        yClean(i, 1) = yDelay(i, 1);
    end
end

% Transfer Function Formula From Slides H(e^(jw)) = 1/(1-ae^(-jw))
co = zeros(1, delaySamples + 1);
co(1) = 1;
co(end) = -volume;
H = zeros(size(freqs));
for k = 1:K
    H(k) = 1 ./ (co * (exp(-1j * 2 * pi * freqs(k) / Fs192 * (0:delaySamples))).');
end

% Plotting Coefficients
subplot(4, 2, 5);
hold on;
stem(0:length(co)-1, co, 'filled');
stem(0:length(1)-1, 1, 'filled');
hold off;
title('Transfer Function - Coefficients');
xlabel('Index');
ylabel('Magnitude');
legend('denominator', 'numerator');

% Plotting Magnitude Response
subplot(4, 2, 6);
plot(freqs, abs(H), 'b');
title('Transfer Function - Magnitude Response');
xlabel('Frequency (Hz)');
ylabel('Magnitude');

% Plotting Time Domain Signal
subplot(4, 2, 7);
plot(t192, yClean, 'b');
title('Clean Audio - Time Domain');
xlabel('Time (s)');
ylabel('Magnitude');
soundClean = audioplayer(yClean, Fs192, 24);

% Manually Calculated FFT
fClean = zeros(K, 1);
for k = 1:K
    fClean(k) = sum(yClean(:, 1) .* exp(-1j * 2 * pi * (k - 1) / N * n'));
end

% Plotting Frequency Domain Signal
subplot(4, 2, 8);
plot(freqs, abs(fClean));
title('Clean Audio - Frequency Domain');
xlabel('Time (s)');
ylabel('Magnitude');

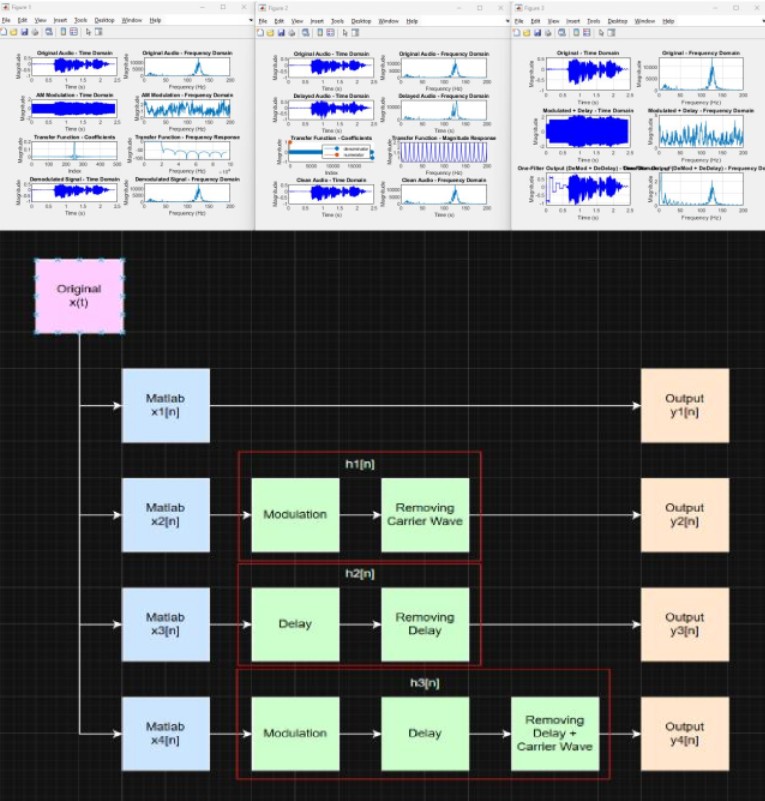

%% Mod -> Demod -> Delay -> DeDelay
% Redefine the signal length and index vector
x = y192(:, 1);
N = length(x);
n = 0:N-1;

% AM Modulation
carrier2 = cos(2 * pi * Fc * t192).';
am_signal2 = (1 + x) .* carrier2;

% AM Coherent Demodulation
demod_raw2 = am_signal2 .* carrier2;

% FIR Lowpass
wc = 2 * pi * cutoff / Fs192;
m = 0:M-1;
alpha = (M - 1) / 2;
h = sin(wc * (m - alpha)) ./ (pi * (m - alpha));
h(alpha + 1) = wc / pi;
h = h / sum(h);

% Transfer function FFT display
Hlp = zeros(K, 1);
for k = 1:K
    Hlp(k) = sum(h .* exp(-1j * 2 * pi * (k - 1) / K * m));
end
fTrans = (0:K-1) * Fs192 / K;
nyquist = fTrans <= Fs192 / 2;

% Manual FIR Convolution
demod_signal2 = zeros(N, 1);
for i = 1:N
    for j = 1:M
        if (i - j + 1 > 0)
            demod_signal2(i) = demod_signal2(i) + demod_raw2(i - j + 1) * h(j);
        end
    end
end
demod_signal2 = demod_signal2 - mean(demod_signal2);
demod_signal2 = 2 * demod_signal2;
soundDemodulated2 = audioplayer(demod_signal2, Fs192, 24);

% Delay (applying to the DEMOD signal)
delaySamples = round(delaySec * Fs192);
yDelay2 = demod_signal2;
for i = (delaySamples + 1):N
    yDelay2(i, 1) = demod_signal2(i, 1) + volume * demod_signal2(i - delaySamples, 1);
end
soundDelay2 = audioplayer(yDelay2, Fs192, 24);

% Removing Delay With IIR (inverse comb)
yClean2 = zeros(size(yDelay2));
for i = 1:N
    if i > delaySamples
        yClean2(i, 1) = yDelay2(i, 1) - volume * yClean2(i - delaySamples, 1);
    else
        yClean2(i, 1) = yDelay2(i, 1);
    end
end
soundClean2 = audioplayer(yClean2, Fs192, 24);

%% Time & Freq Domain Plots for (Original, Mod2, Demod2, Delay2, and DeDelay2)
figure;

% Original (Time Domain)
subplot(5, 2, 1);
plot(t192, x, 'b');
title('Original - Time Domain');
xlabel('Time (s)'); ylabel('Magnitude');

% Original (Frequency Domain)
f_orig2 = zeros(K, 1);
for k = 1:K
    f_orig2(k) = sum(x .* exp(-1j * 2 * pi * (k - 1) / N * n'));
end
subplot(5, 2, 2);
plot(freqs, abs(f_orig2), 'b');
title('Original - Frequency Domain');
xlabel('Frequency (Hz)'); ylabel('Magnitude');

% AM Mod (Time Domain)
subplot(5, 2, 3);
plot(t192, am_signal2, 'b');
title('AM Modulated (Mod2) - Time Domain');
xlabel('Time (s)'); ylabel('Magnitude');

% AM Mod (Frequency Domain)
f_am2 = zeros(K, 1);
for k = 1:K
    f_am2(k) = sum(am_signal2 .* exp(-1j * 2 * pi * (k - 1) / N * n'));
end
subplot(5, 2, 4);
plot(freqs, abs(f_am2), 'b');
title('AM Modulated (Mod2) - Frequency Domain');
xlabel('Frequency (Hz)'); ylabel('Magnitude');

% Demod (Time Domain)
subplot(5, 2, 5);
plot(t192, demod_signal2, 'b');
title('Demodulated (Demod2) - Time Domain');
xlabel('Time (s)'); ylabel('Magnitude');

% Demod (Frequency Domain)
f_demod2 = zeros(K, 1);
for k = 1:K
    f_demod2(k) = sum(demod_signal2 .* exp(-1j * 2 * pi * (k - 1) / N * n'));
end
subplot(5, 2, 6);
plot(freqs, abs(f_demod2), 'b');
title('Demodulated (Demod2) - Frequency Domain');
xlabel('Frequency (Hz)'); ylabel('Magnitude');

% Delay (Time Domain)
subplot(5, 2, 7);
plot(t192, yDelay2, 'b');
title('Demod + Delay (Delay2) - Time Domain');
xlabel('Time (s)'); ylabel('Magnitude');

% Delay (Frequency Domain)
f_delay2 = zeros(K, 1);
for k = 1:K
    f_delay2(k) = sum(yDelay2 .* exp(-1j * 2 * pi * (k - 1) / N * n'));
end
subplot(5, 2, 8);
plot(freqs, abs(f_delay2), 'b');
title('Demod + Delay (Delay2) - Frequency Domain');
xlabel('Frequency (Hz)'); ylabel('Magnitude');

% Clean (Time Domain)
subplot(5, 2, 9);
plot(t192, yClean2, 'b');
title('Final: Delay Removed (DeDelay2) - Time Domain');
xlabel('Time (s)'); ylabel('Magnitude');

% Clean (Frequency Domain)
f_clean2 = zeros(K, 1);
for k = 1:K
    f_clean2(k) = sum(yClean2 .* exp(-1j * 2 * pi * (k - 1) / N * n'));
end
subplot(5, 2, 10);
plot(freqs, abs(f_clean2), 'b');
title('Final: Delay Removed (DeDelay2) - Frequency Domain');
xlabel('Frequency (Hz)'); ylabel('Magnitude');

% Audio players
soundOriginal2  = audioplayer(x, Fs192, 24);
soundModulated2 = audioplayer(am_signal2, Fs192, 24);
soundDemod2     = audioplayer(demod_signal2, Fs192, 24);
soundDelay2     = audioplayer(yDelay2, Fs192, 24);
soundClean2     = audioplayer(yClean2, Fs192, 24);

%% To Hear Sounds, type "play(sound...)"
% Original Audio File
disp('Original:          play(soundOriginal)');
% Mod and Demod Audio
disp('AM Modulated:      play(soundModulated)');
disp('AM Demodulation:   play(soundDemodulated)');
% Delay and Clean Audio
disp('With Delay:        play(soundDelay)');
disp('Delay Removed:     play(soundClean)');
% Mod -> Demod -> Delay -> DeDelay Audio in order
disp('Original:        play(soundOriginal2)');
disp('AM Modulated:    play(soundModulated2)');
disp('Demodulated:     play(soundDemod2)');
disp('With Delay:      play(soundDelay2)');
disp('Delay Removed:   play(soundClean2)');
